Description

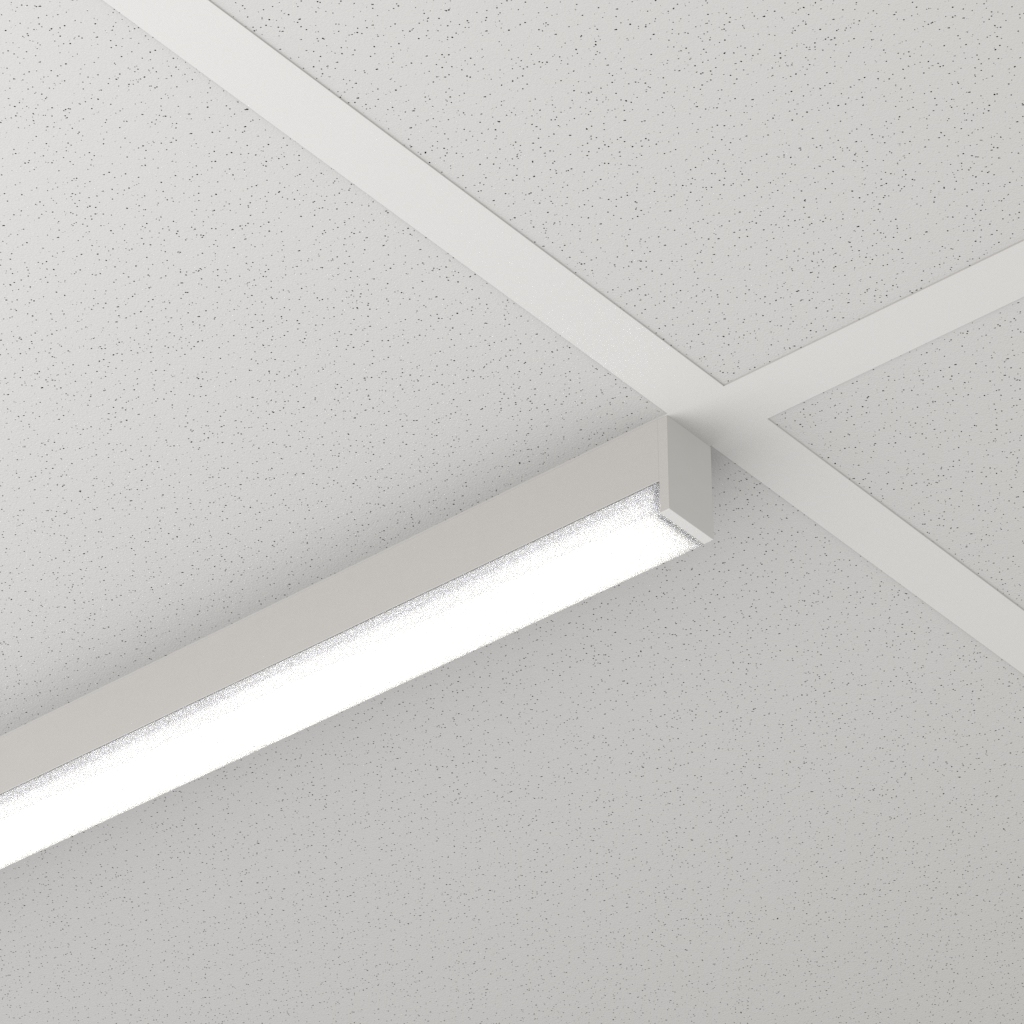

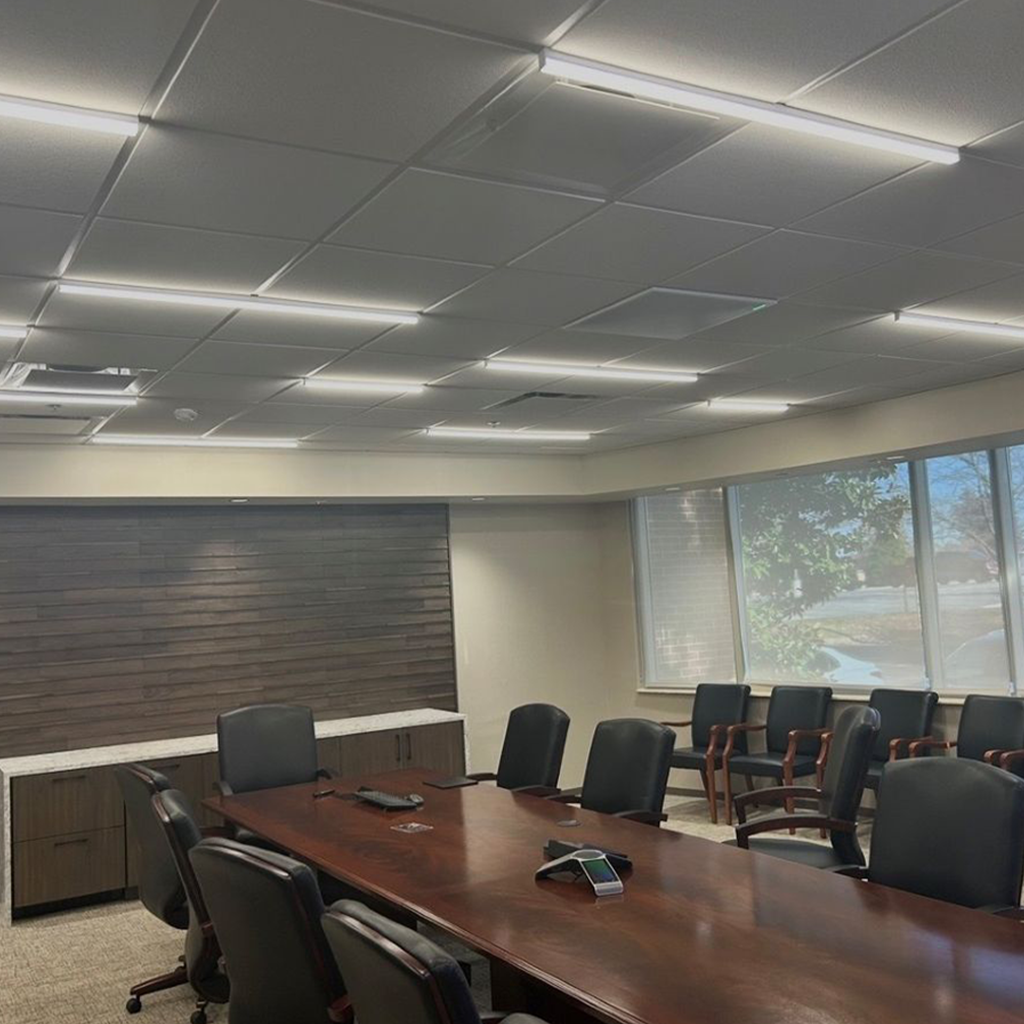

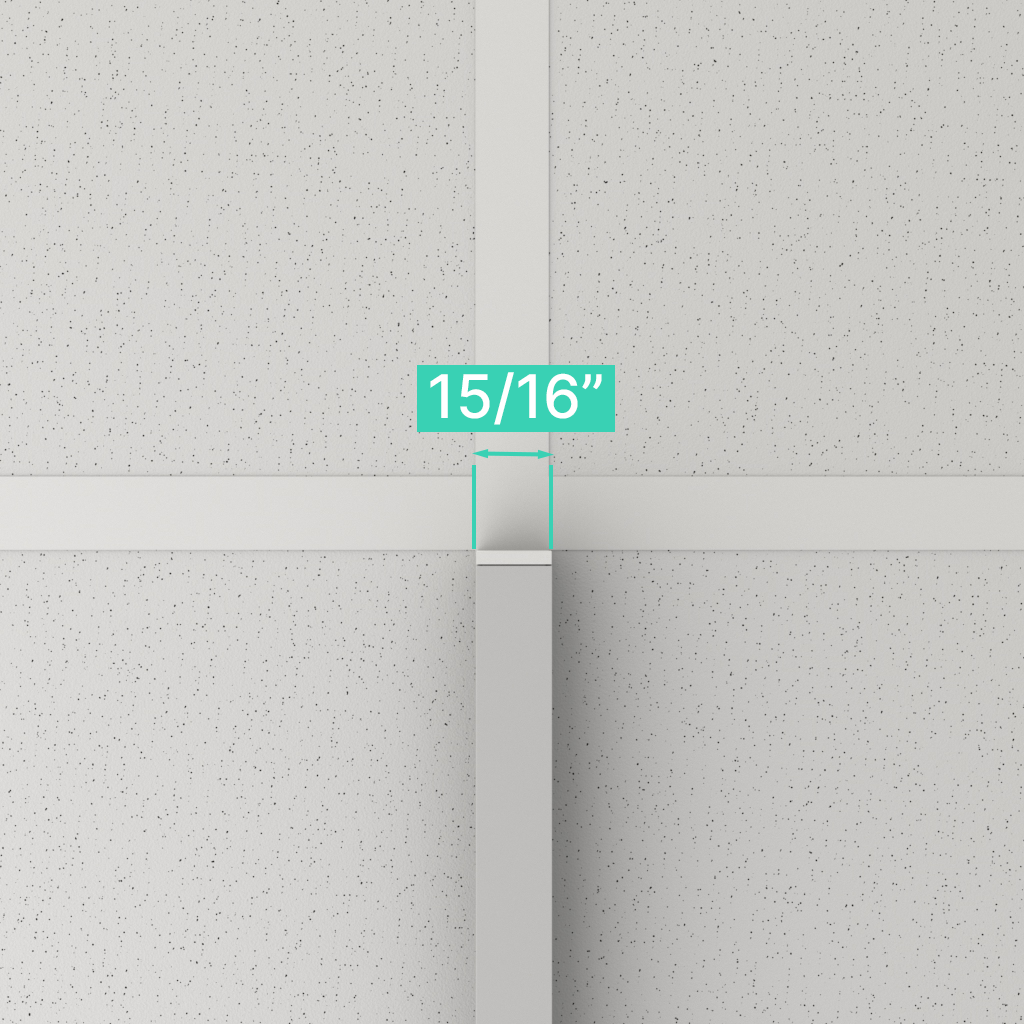

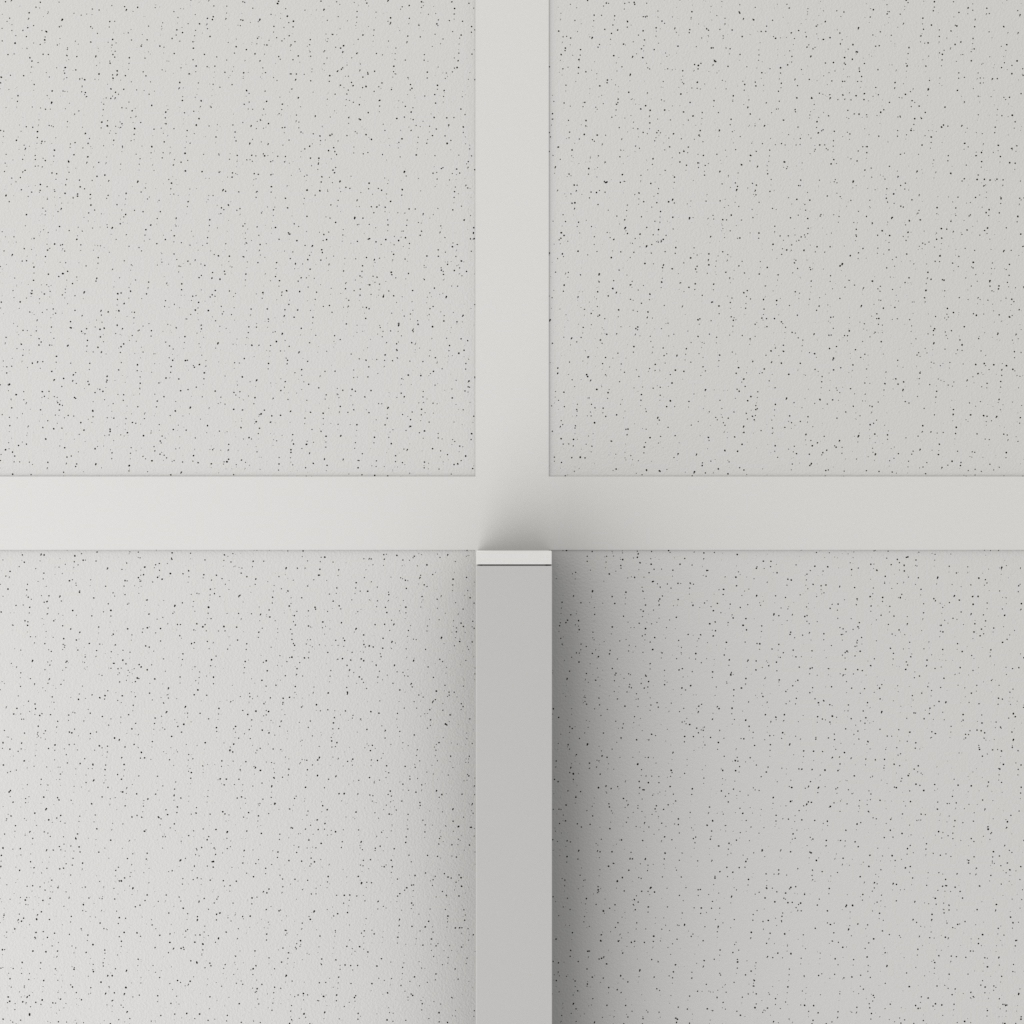

GRIDBar 15/16” Drop Lens 1/2″ is a patented linear lighting solution designed to directly replace 15/16” T-Bar elements in suspended grid ceilings. It delivers seamless integration, flexible placement, and high-performance illumination. As the only system engineered for true T-Bar replacement, GRIDBar 15/16” can be positioned anywhere within the ceiling grid, in-line or across tiles, while maintaining precise alignment with standard layouts through TrueGrid™ Alignment.
The architectural drop lens provides a volumetric lambertian light distribution that emits evenly in all directions, minimizing hotspots and delivering smooth, consistent illumination across any surface
GRIDBar 15/16” is BAA and TAA compliant, manufactured in Woburn, MA, and supported by a fully North American supply chain.
Downloads & Files
Technical Drawings
Installation
IES Files
Sustainability

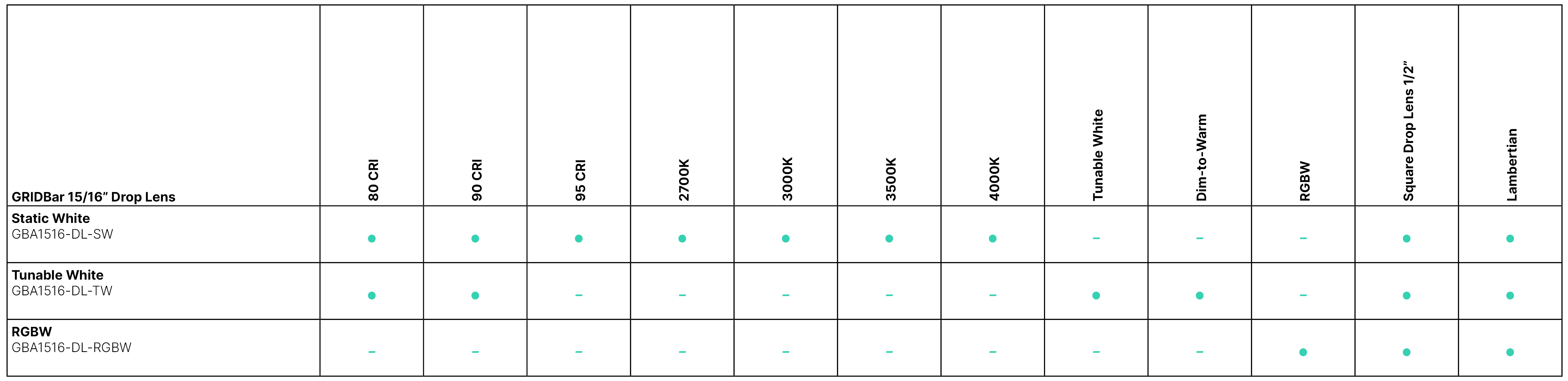

SmartBeam® Choices
Product Configuration
Installation
Attach Mounting Clips

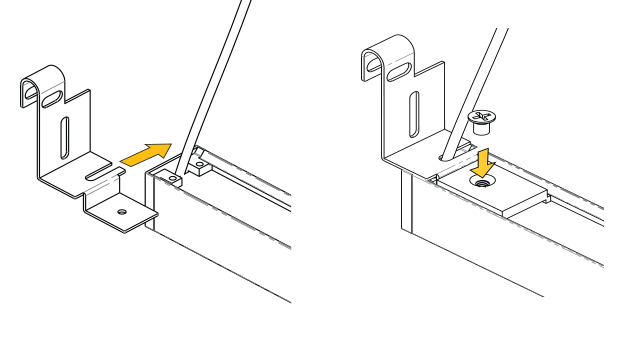

Attach the mounting clips to the GRIDBar fixture. Slide the wire through the slot of the clip so the wire is centered. Slide the threaded bracket to each end of the GRIDBar fixture until they engage with the Mounting Clips. Fasten with screw.
Mount Fixture

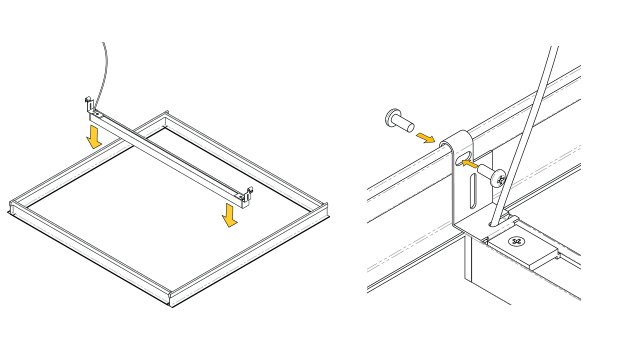

Place the GRIDBar fixture onto the T-Bar using the mounting clips. If needed, secure the clip to the T-Bar through the top slot with appropriate hardware on each end of the fixture.

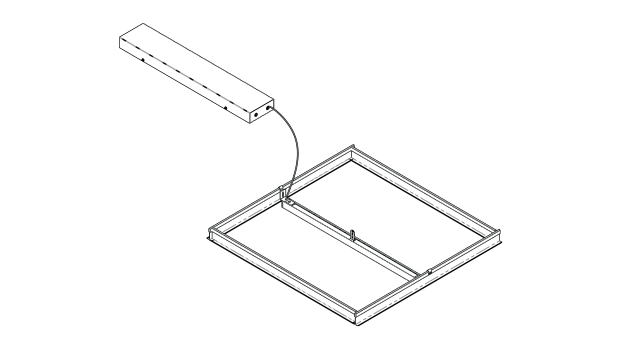

Install Driver Box

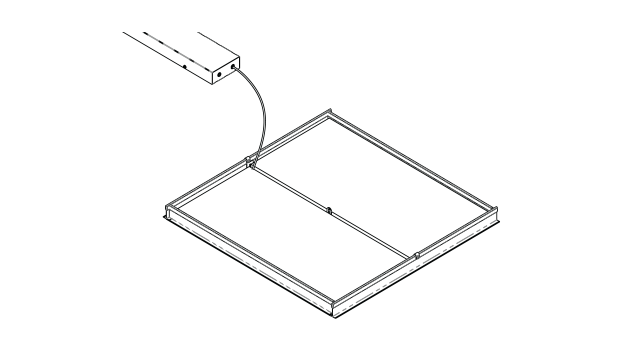

Connect DC Feed from fixture to the driver box. Connect AC Feed to the driver box. The driver box has 7/8” knock out.
Install Ceiling Tile
Install the ceiling tile.
Standards & Certifications
Driver & Lighting Controls Options
