GRIDHybrid6 MCO

Multifunctional 6″ Edge-Lit T-Bar Mounted Linear Panel

Product Code: GHY6-FL

Features & Benefits

  • Dimensions: 6” (W) X 1.4” (H)
  • Mounting Style: T-Bar / T-Bar Replacement
  • Standard Lengths: 2FT, 4FT, 6FT, 8FT
  • Finishes: Powder Coated & Anodized
  • Housing Material: Extruded, Recycled Aluminum
  • Warranty: 5 Year, 50,000 Hour Warranty
  • Sustainability: Declare Listed & Red List Free
  • LED Performance: 1,000 Lm/Ft, 135 Lm/W efficacy
  • LED Choices: Static White, Tunable White & RGBW
  • Optics Choices: Flush and Regressed Lens
  • Beam Distributions: Symmetric and Asymmetric Direct Beam Patterns
  • CRI / CCT: 80/90/95+, 2700K to 6500K
  • Driver Options: Factory, Lutron & eldoLED
  • Emergency Backup: Emergency Circuit & Battery
  • Compatible Controls: Lutron, Casambi, Cooper, nLight

Description

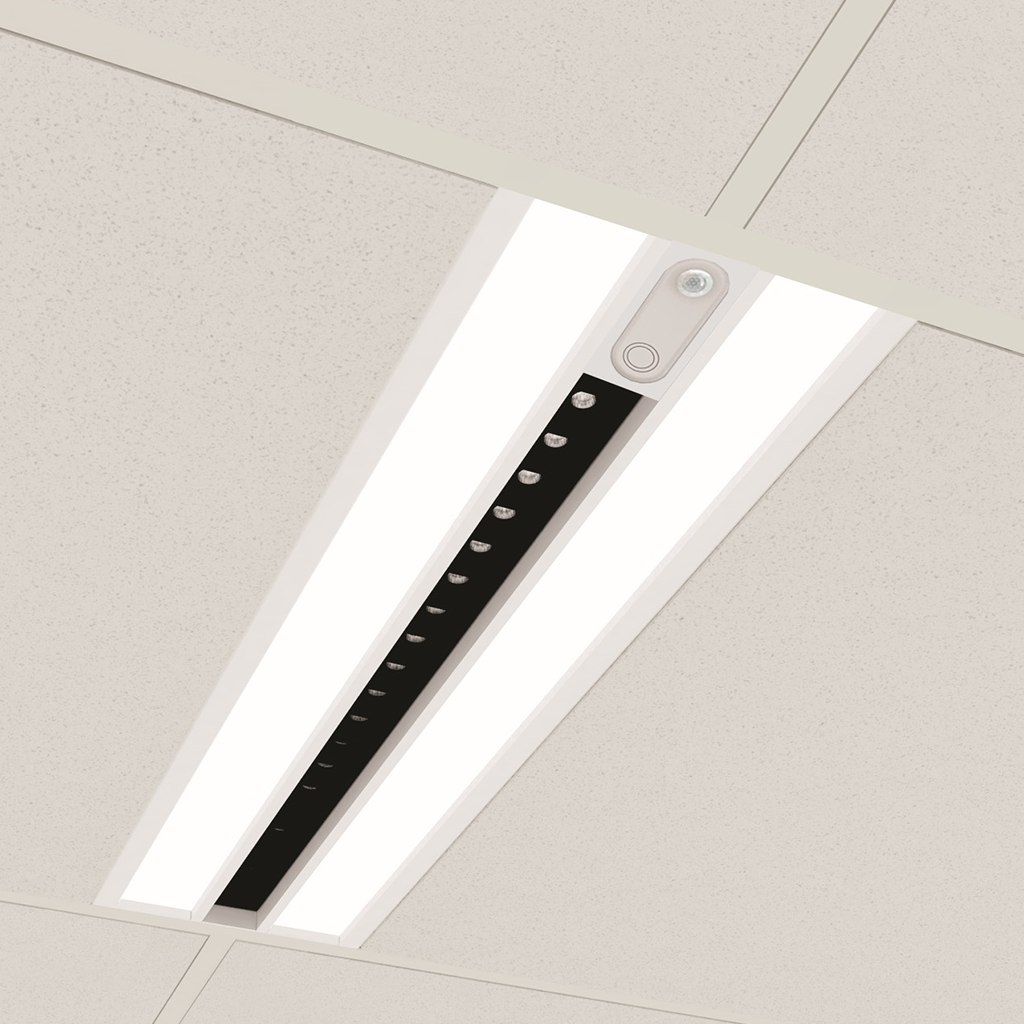

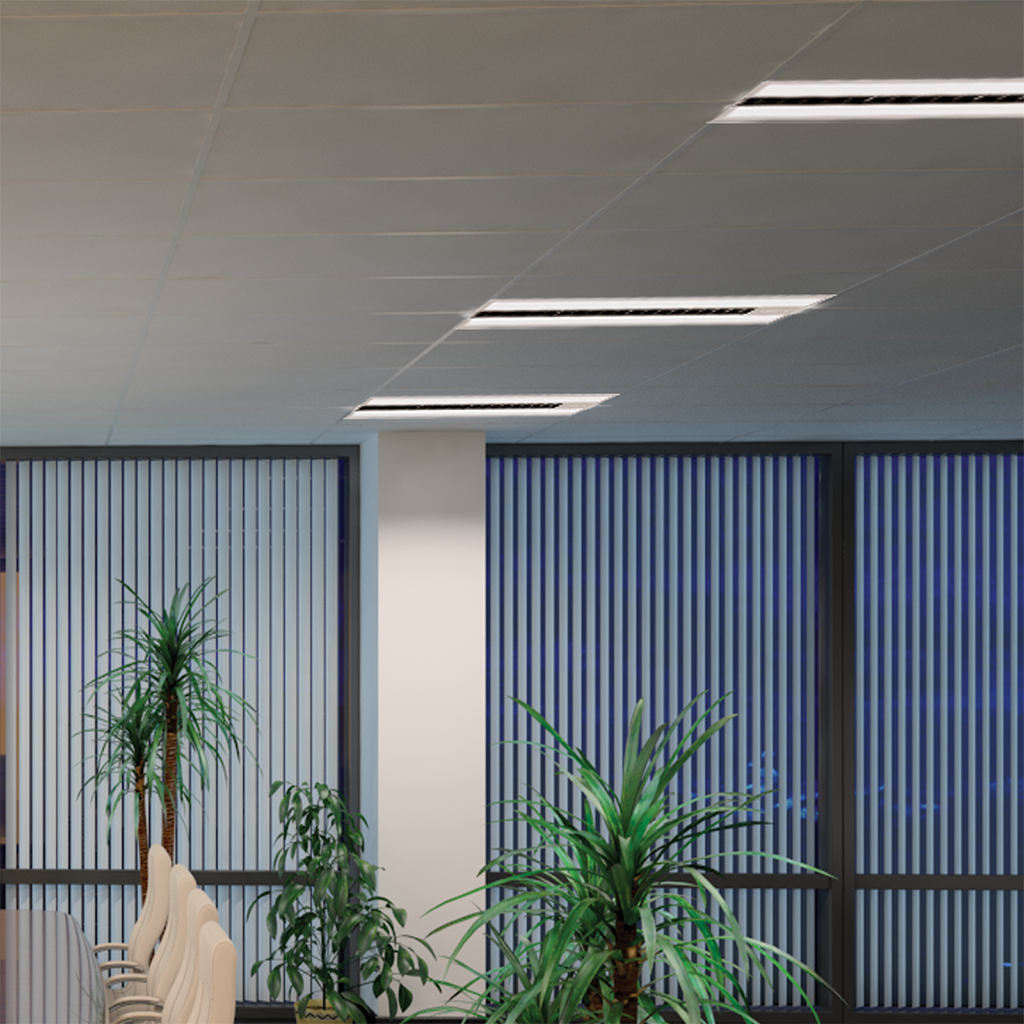

GRIDHybrid6 Flat Lens is a low-profile 6″ wide LED luminaire engineered to replace or mount directly to 9/16″ and 15/16″ T-Bar systems in suspended grid ceilings. Dual, individually addressable edge-lit panels provide precise control with a unique center section that can house a low glare micro-cavity optics section plus sensors and controls. Designed to sit below the T-Bar main beam, GRIDHybrid6 excels in low or zero plenum conditions without compromising performance. GRIDHybrid6 Flat Lens is available in static white, tunable white, and RGBW, and features SmartBeam® technology for advanced symmetric and asymmetric distributions tailored to the space—all within an installer-friendly form factor. Manufactured in Woburn, MA, GRIDHybrid6 is BABAA and TAA compliant and built on a North American supply chain.

Downloads & Files

Specification Guides
Technical Drawings
Installation
IES Files
Sustainability

SmartBeam® Choices

Standards & Certifications

Driver & Lighting Controls Options
