GRIDBar 15/16″ NCO

15/16″ T-Bar Replacement LED Linear Light

Product Code: GBA1516-NCO

Key Features

Dimensions: 15/16” (W) X 15/16” (H)

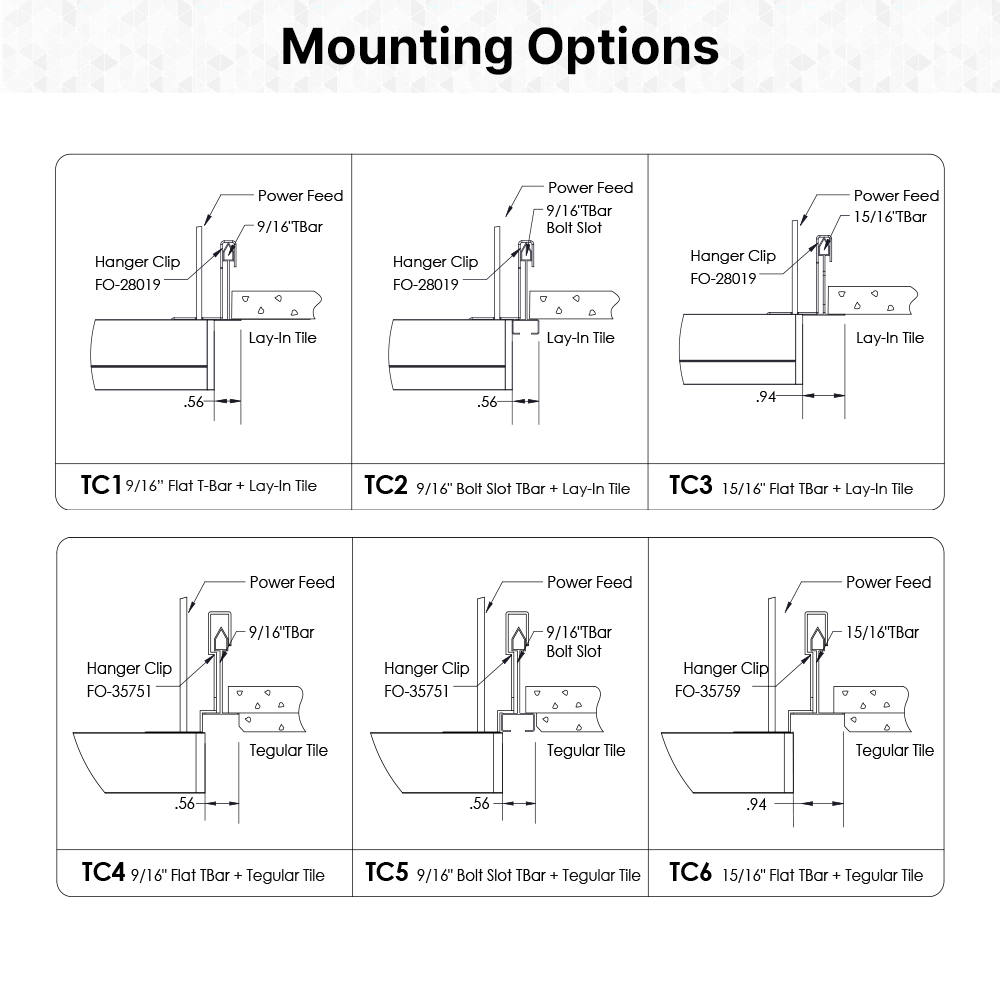

Mounting Style: T-Bar / T-Bar Replacement

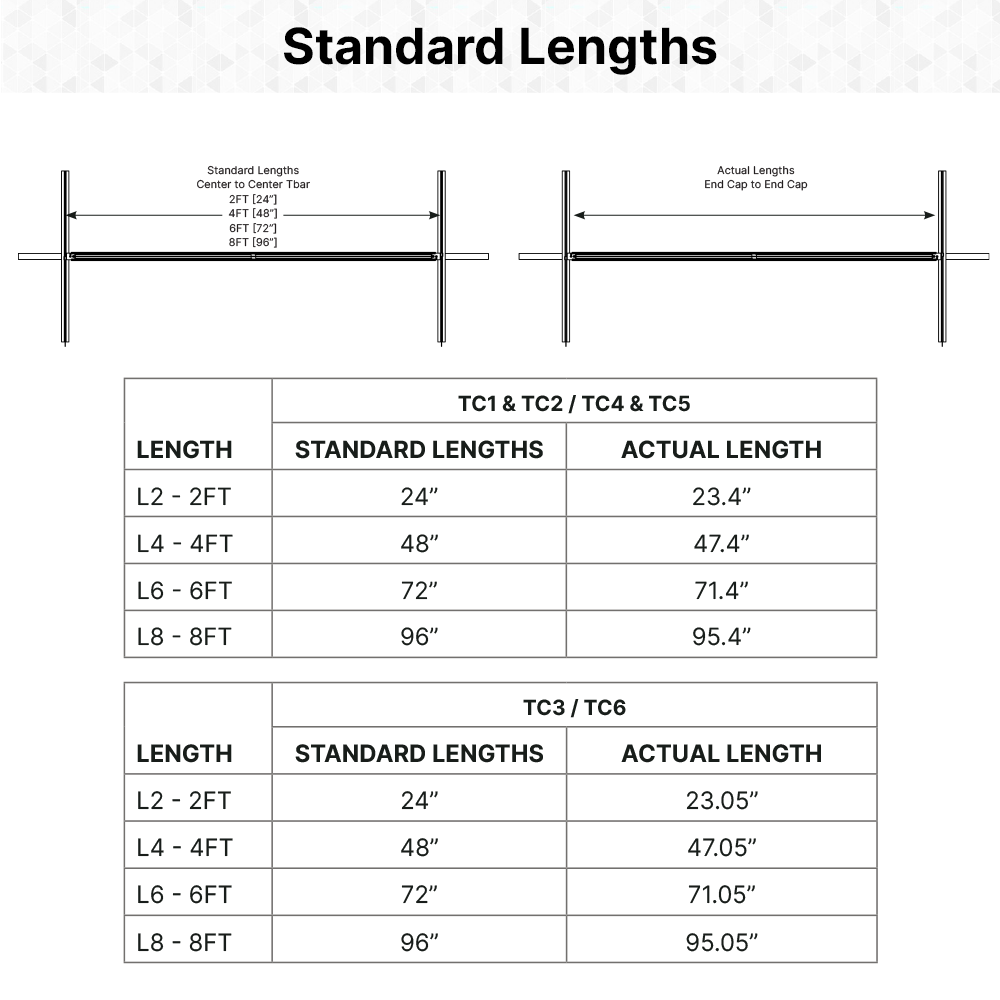

Standard Lengths: 2FT, 4FT, 6FT, 8FT
Finishes: Powder Coated & Anodized
Housing Material: Extruded, Recycled Aluminum
Warranty: 5 Year, 50,000 Hour Warranty
Sustainability: Declare Listed & Red List Free
LED Performance: 1,000 Lm/Ft, 135 Lm/W efficacy
LED Choices: Static White
Optics Choices: Nano Cavity Optics (NCO), UGR<19
Beam Distributions: Nano Cavity Spot Beam Distributions
CRI / CCT: 80/90+, 2700K to 6500K
Driver Options: Factory, Lutron & eldoLED
Emergency Backup: Emergency Circuit & Battery
Compatible Controls: Lutron, Casambi, Cooper, nLight

Description

Downloads & Files

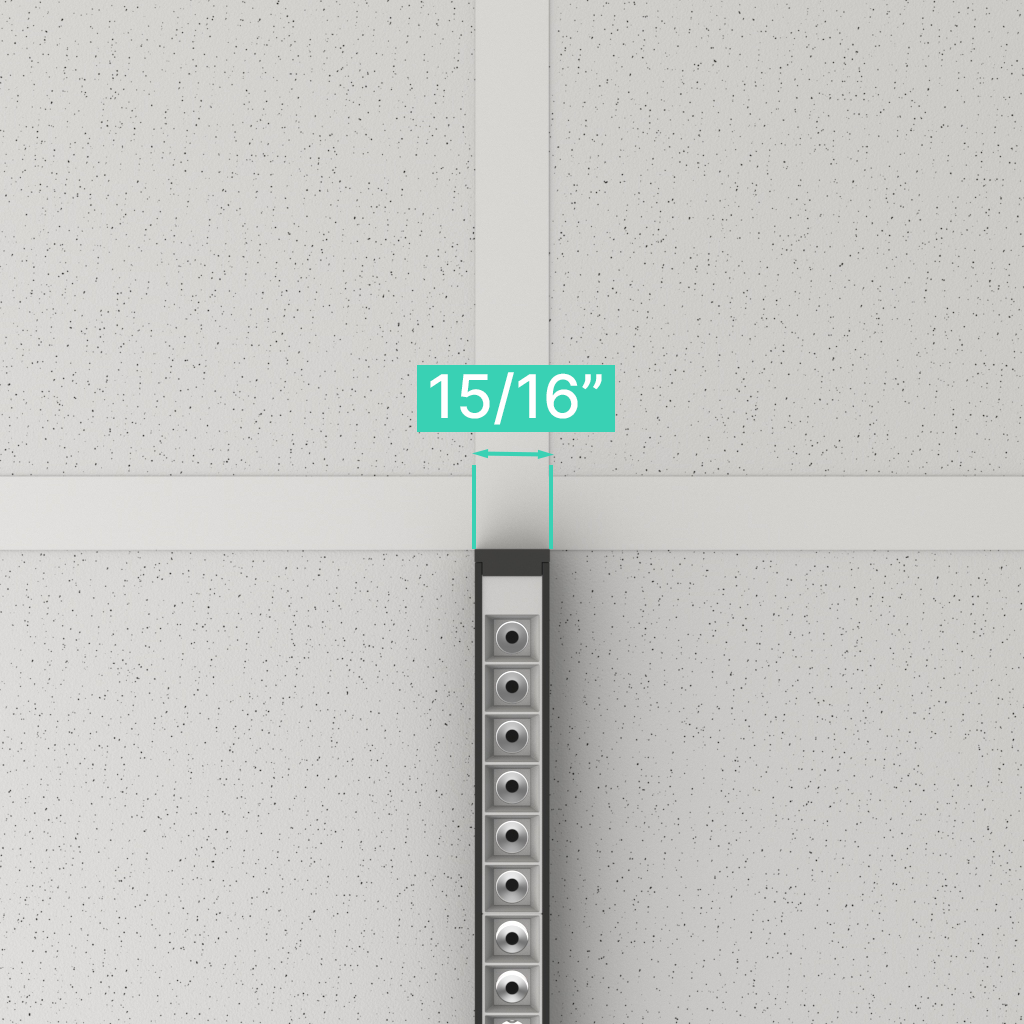

GRIDBar 15/16” NCO is a patented linear lighting solution designed to directly replace 15/16” T-Bar elements in suspended grid ceilings, delivering seamless integration, flexible placement, and high-performance illumination. Engineered for true T-Bar replacement, it can be positioned anywhere within the ceiling grid, in-line or across tiles, while maintaining precise alignment with standard layouts using TrueGrid™ Alignment. Its precision 15/16″ width matches standard T-Bar profiles for a clean, consistent aesthetic and is also compatible with 9/16″ and 1.5″ grid systems for added versatility.

Each LED is paired with individual lenses and parabolic reflectors using Nano Cavity Optics (NCO), producing concentrated, low-glare (UGR <19) distributions ideal for task-specific applications. The regulated beam minimizes glare, provides a smooth brightness transition, and maintains visual comfort while delivering precise illumination. At cut-off, NCO beams appear soft, with a larger spread that balances focused and ambient light for a natural, comfortable environment.

GRIDBar 15/16” NCO offers static white color, enhanced with SmartBeam® technology to deliver advanced spot beam distributions tailored to the space. Its ceiling-native form factor makes installation easy and seamless. Fully BAA and TAA compliant, GRIDBar 15/16” NCO is manufactured in Woburn, MA, and supported by a complete North American supply chain.
