GRIDVector1 NCO

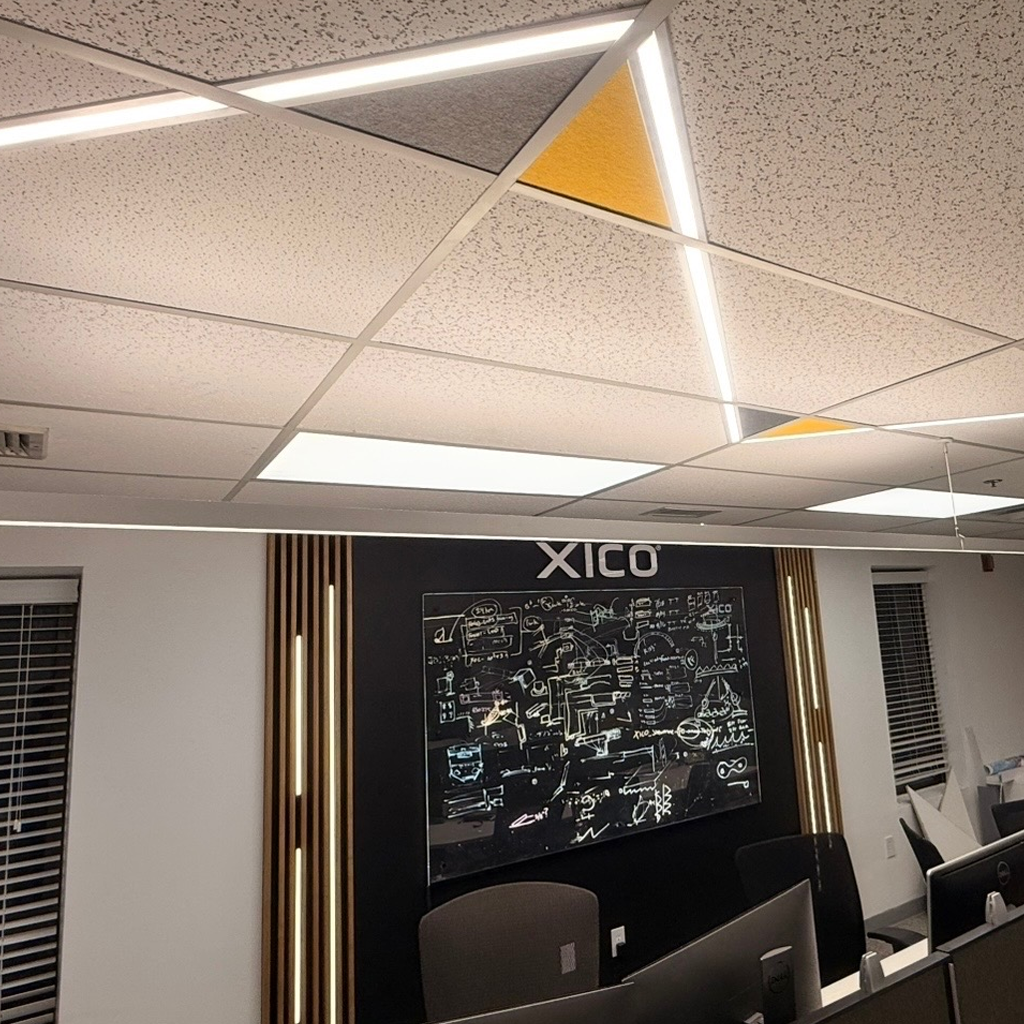

GRIDVector1 NCO is a recessed linear lighting system designed for seamless integration into 9/16″ and 15/16″ T-Bar grid ceilings. Featuring 1′ and 3′ angled sections, GRIDVector1 introduces expressive geometry and directional lines to standard grid layouts, allowing designers to create diagonals, chevrons, diamonds, and custom vector-based patterns with ease. Built on the GRIDSlot1 platform, it delivers the same zero plenum, flush-to-grid design—enabling clean, consistent integration even in no-plenum conditions—while expanding design possibilities through a family of precision-mitered angled segments.

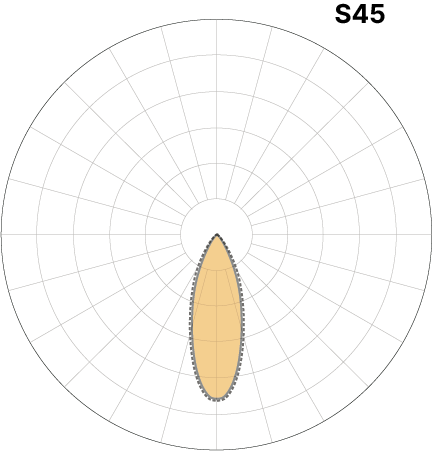

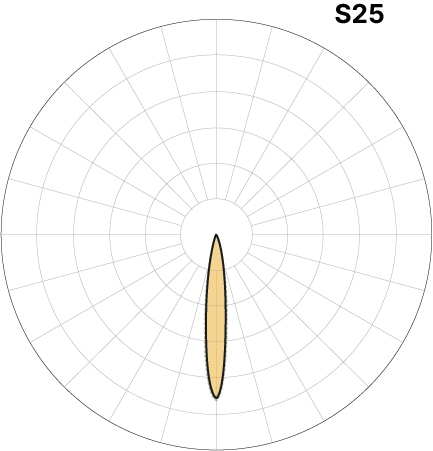

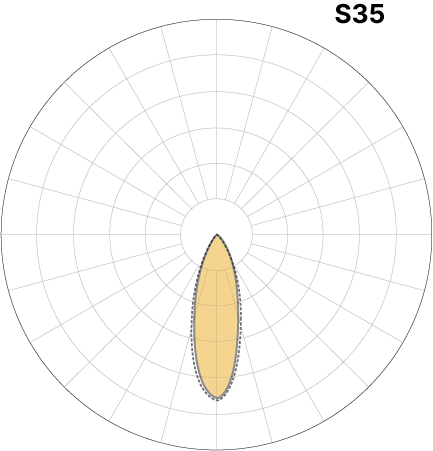

Individual lenses and parabolic reflectors are located below each LED using Nano Cavity Optics (NCO). For greater comfort, the regulated beam lowers glare and adjusts the light output. These concentrated distributions are ideal for a wide range of task-specific requirements. At cut-off, NCO has a softer appearance, a larger beam spread, and a gradual brightness transition.

GRIDVector1 offers high lumen per foot, high CRI, and is available in static white. Optical options include Nano Cavity Optics (NCO), engineered as a low-glare solution delivering <19 UGR performance. Integrated SmartBeam® technology delivers advanced spot beam distributions tailored to the space—all within an installer-friendly form factor. BABAA and TAA compliant, GRIDVector1 is manufactured in Woburn, MA using a North American supply chain.
