Description

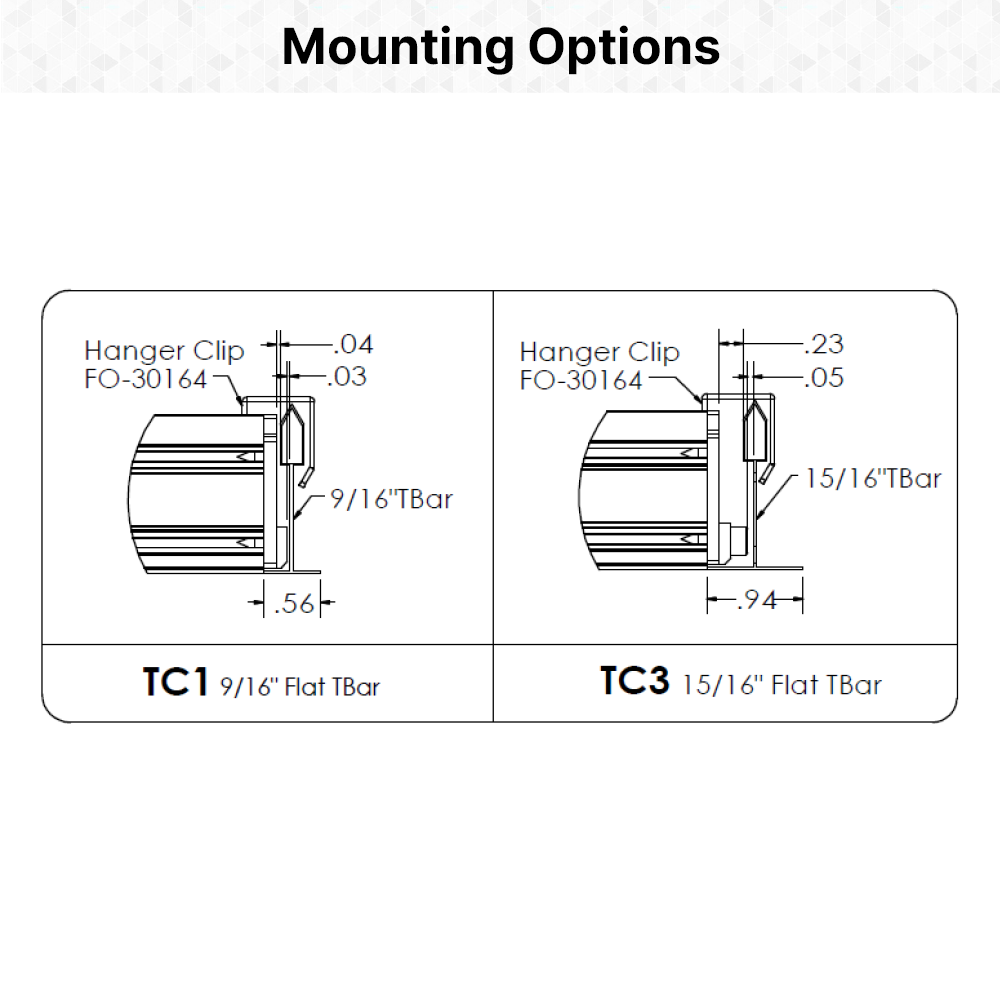

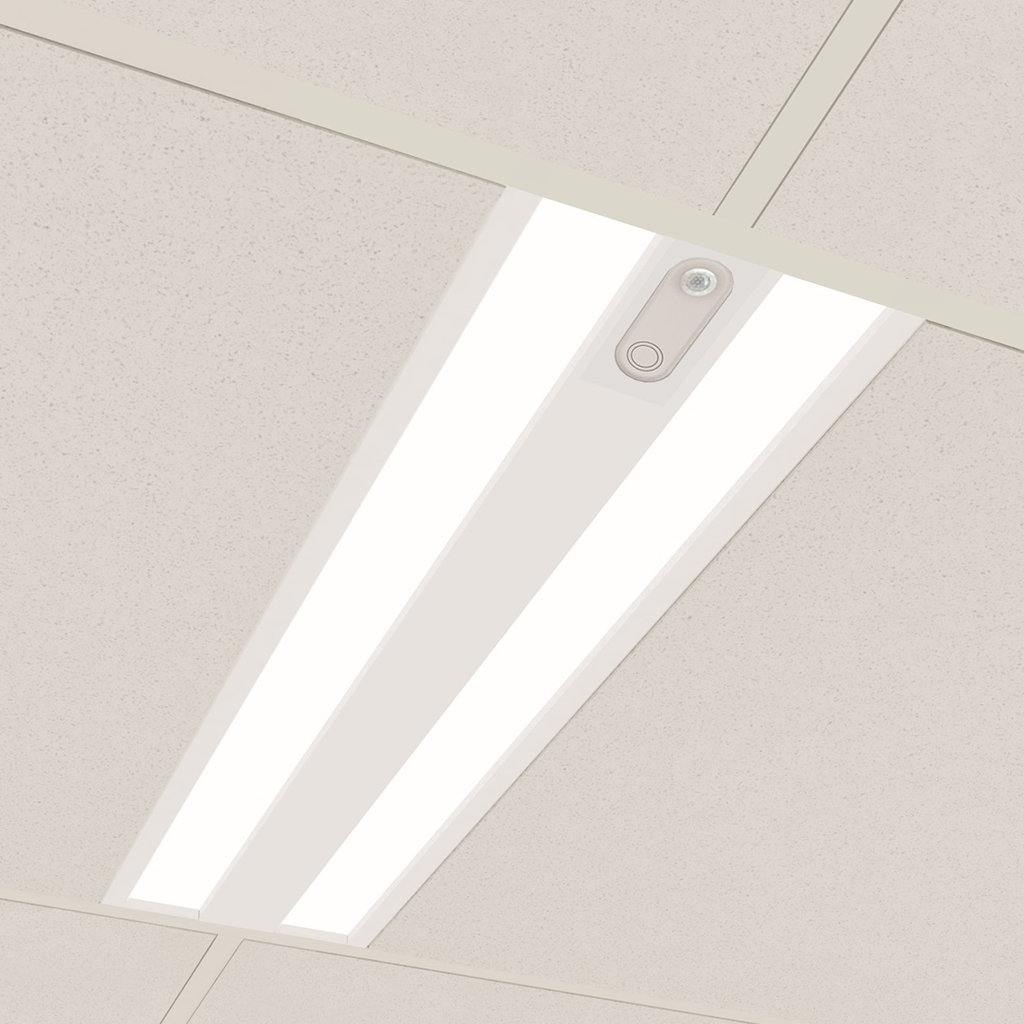

GRIDHybrid6 Flat Lens is a low-profile 6″ wide LED luminaire engineered to replace or mount directly to 9/16″ and 15/16″ T-Bar systems in suspended grid ceilings. Dual, individually addressable edge-lit panels provide precise control, while an integrated center section houses a field-serviceable driver, sensors, and controls for simplified maintenance and future-ready integration. Designed to sit below the T-Bar main beam, GRIDHybrid6 excels in low or zero plenum conditions without compromising performance. GRIDHybrid6 Flat Lens is available in static white, tunable white, and RGBW, and features SmartBeam® technology for advanced symmetric and asymmetric distributions tailored to the space—all within an installer-friendly form factor. Manufactured in Woburn, MA, GRIDHybrid6 is BABAA and TAA compliant and built on a North American supply chain.
Downloads & Files
Technical Drawings
Installation
IES Files
Sustainability

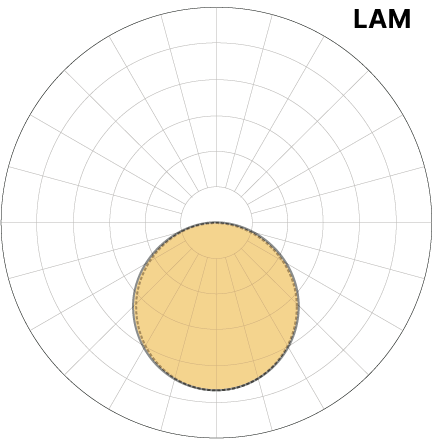

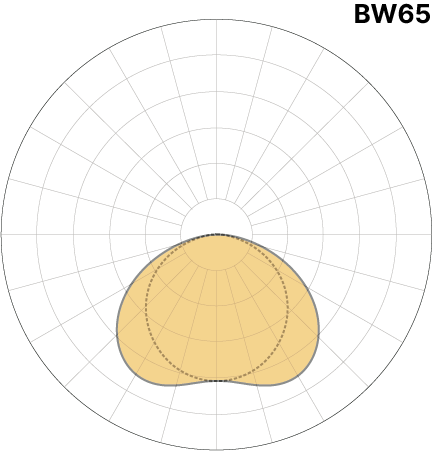

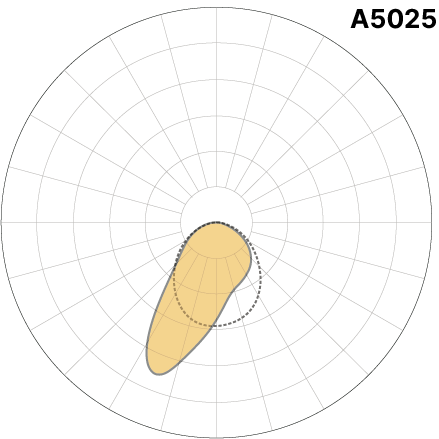

SmartBeam® Choices

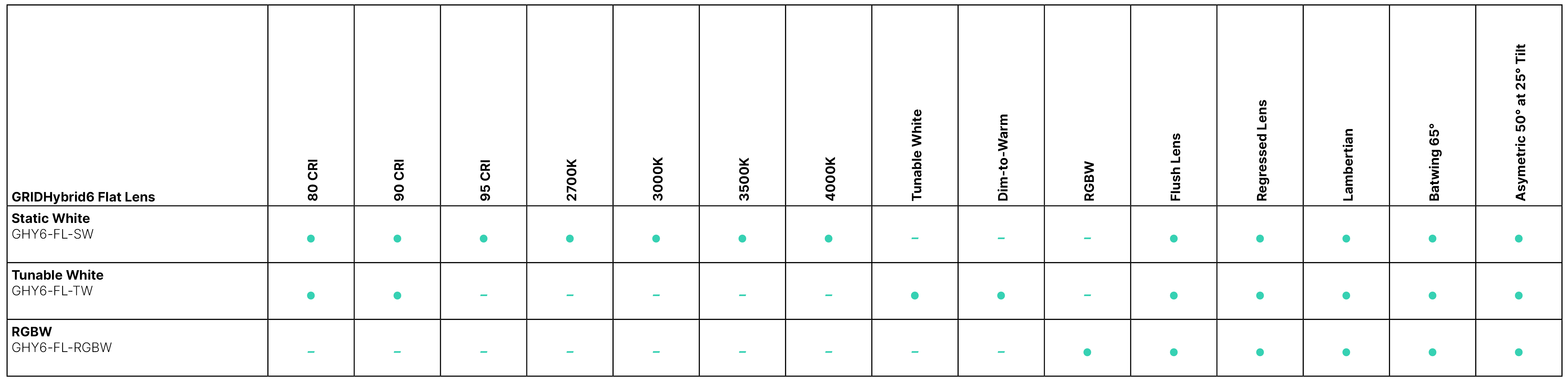

Product Configuration
Installation
Fixture Placement
Once the grid structure has been installed, engage the GRIDHybrid6 fixture into the desired location. Insert one end of the fixture at an angle and then the opposite end.

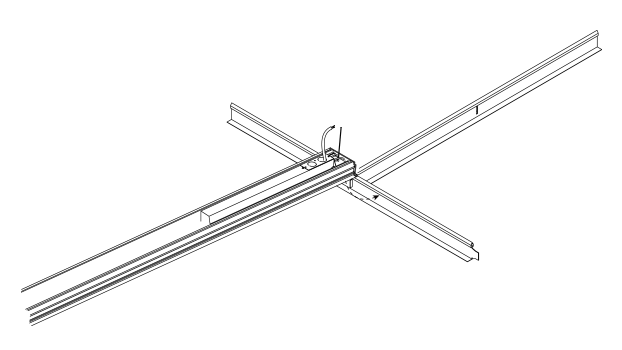

Fixture Location
The GRIDHybrid6 fixture can be installed in line, replacing a T-Bar or freely between T-Bar locations. When installing in line, you may be required to fold over the T-Bar fin, to allow clearance for the end cap.

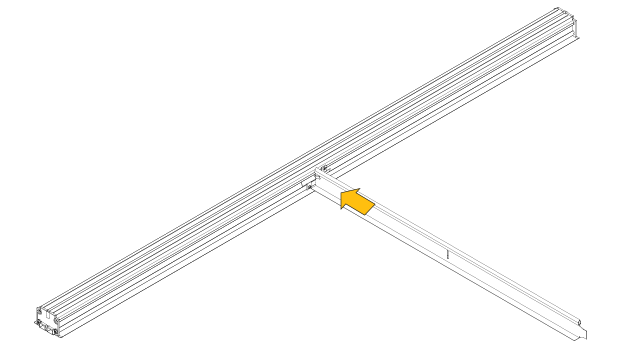

T-Bar Fins
If required, T-Bar Fins are included and can be installed anywhere along the GRIDHybrid6 fixture body to receive a T-Bar that runs perpendicular to the fixture.

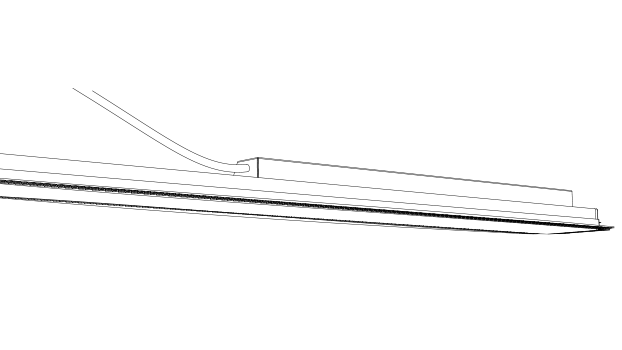

Install Driver Box
An enclosed driver box is provided which is either fastened to the top of the fixture housing or installed remotely. Connect the fixture’s Driver Box wires to the power source. Refer to the wiring diagram. Add structural supports as needed.
Standards & Certifications
Driver & Lighting Controls Options
