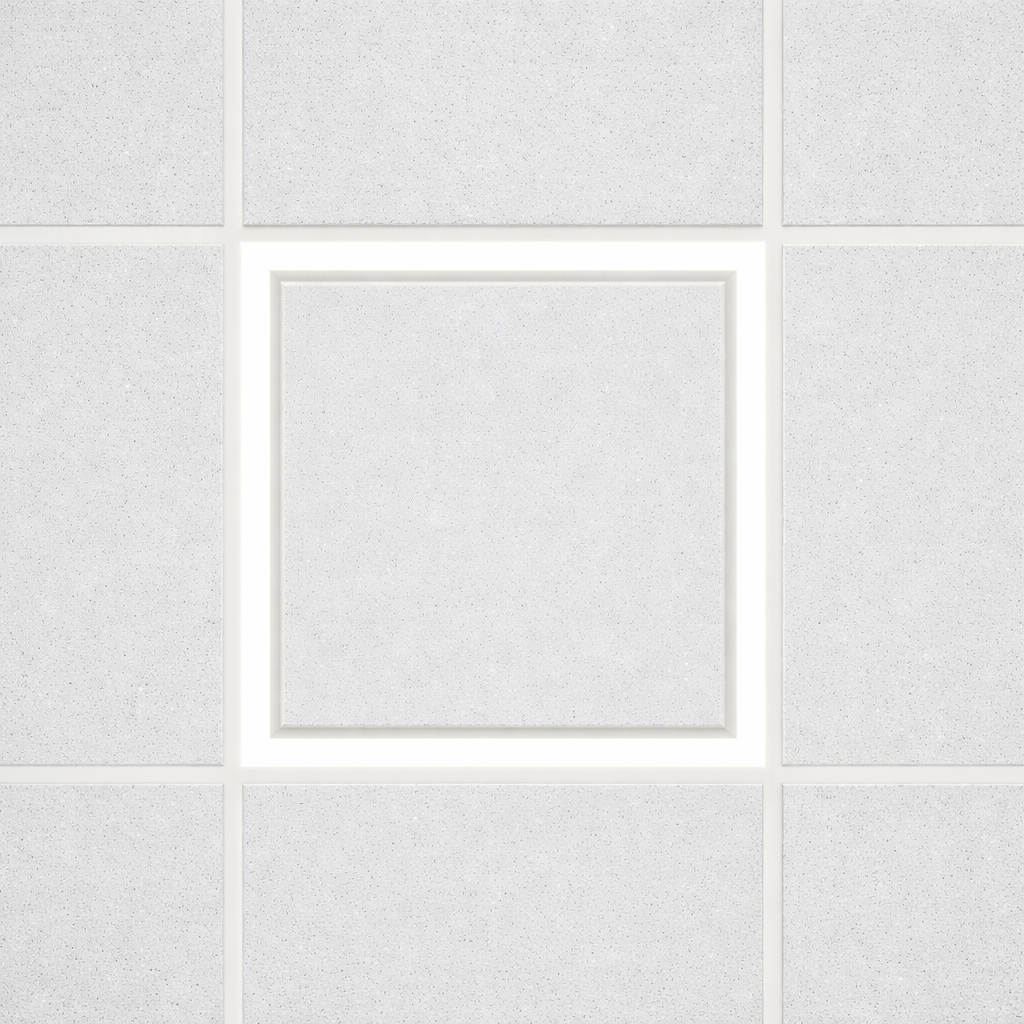

GRIDShape1.5 Flat Lens

Standard Linear Shapes for T-Bar Ceiling Grid Mounting

Product Code: GSLSH1.5-FL

Features & Benefits

Dimensions: 1.8” (W) X 1.5” (H)
Mounting Style: T-Bar
Standard Lengths: 2’X2′, 4’X2′, & 8’X2′
Finishes: Powder Coated & Anodized
Housing Material: Extruded, Recycled Aluminum
Warranty: 5 Year, 50,000 Hour Warranty
Sustainability: Declare Listed & Red List Free
LED Performance: 1,000 Lm/Ft, 150 Lm/W efficacy
LED Choices: Static White, Tunable White & RGBW
Optics Choices: Flush, Regressed Lens and Micro Baffle
Beam Distributions: Symmetric and Asymmetric Direct Beam Patterns
CRI / CCT: 80/90/95+, 2700K to 6500K
Driver Options: Factory, Lutron & eldoLED
Emergency Backup: Emergency Circuit & Battery
Compatible Controls: Lutron, Casambi, Cooper, nLight

Description

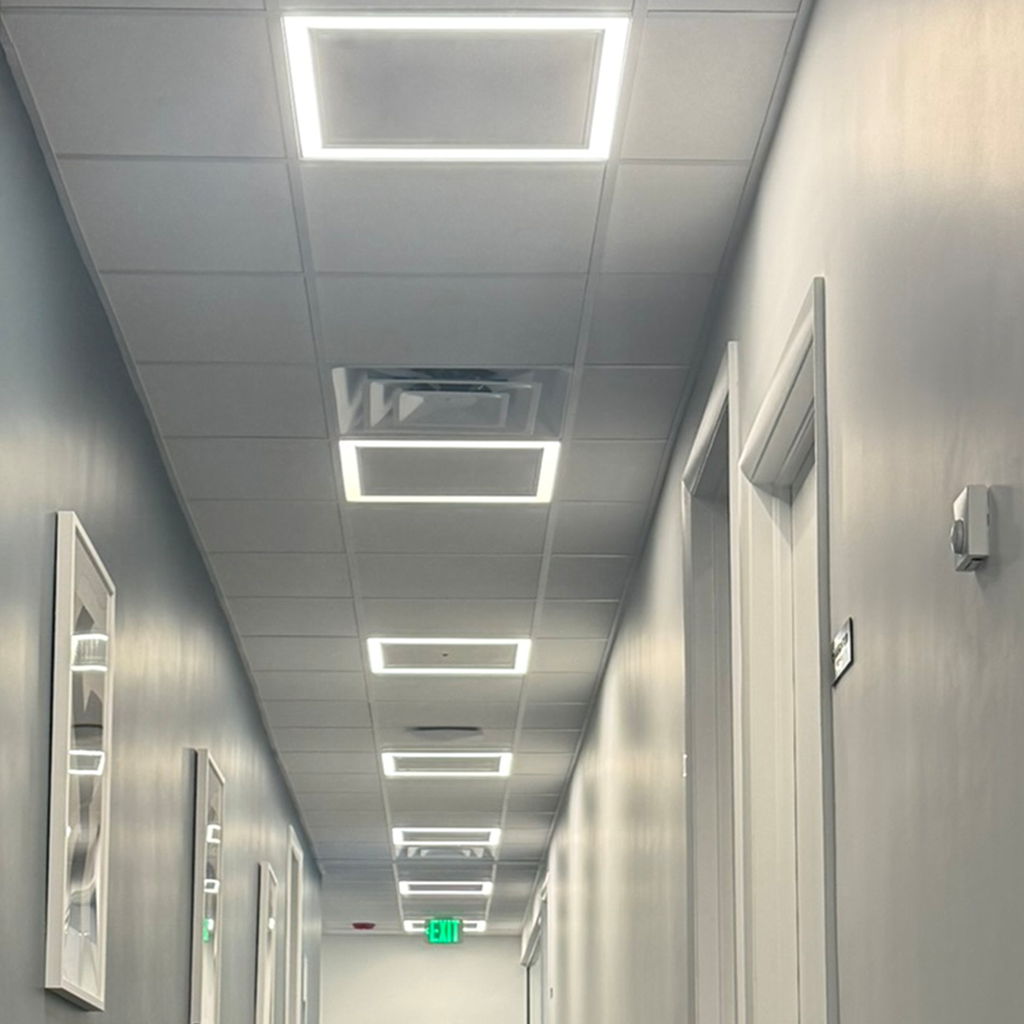

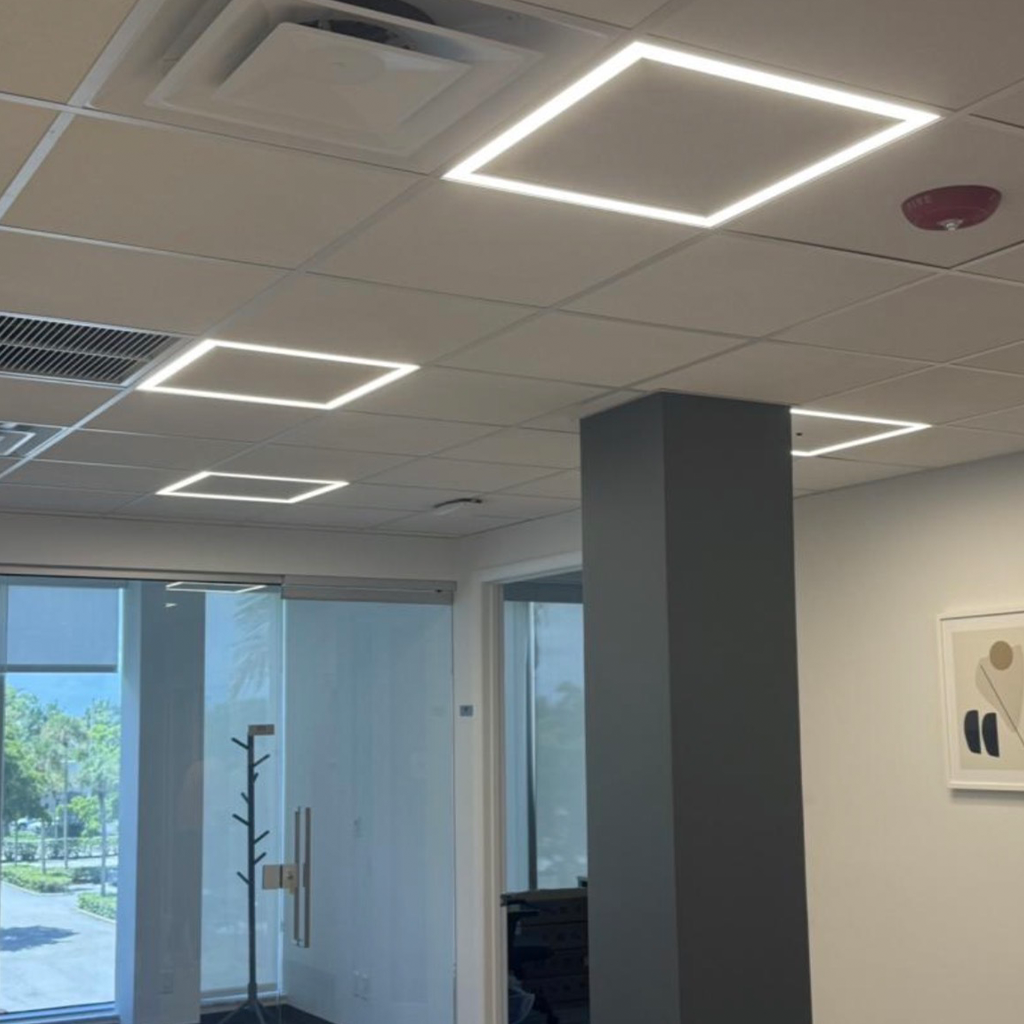

GRIDShape1.5 Flat Lens is an innovative range of pre-fabricated shapes engineered to replace or mount directly to 9/16″ and 15/16″ T-Bar systems in suspended grid ceilings. Based on the low-profile 1.5″ wide GRIDSlot1.5 LED luminaire, shapes include standard 2X2, 2X4 and 1X8 frames. All GRIDShape1.5 products are designed for easy installation into T-Bar ceiling installs and are especially suited to low or zero plenum. GRIDShape1.5 is available in static white, tunable white, and RGBW, and features SmartBeam® technology for advanced symmetric and asymmetric distributions tailored to the space—all within an installer-friendly form factor. BABAA and TAA compliant, GRIDShape is manufactured in Woburn, MA using a North American supply chain.

Downloads & Files

SmartBeam® Choices

Product Configuration

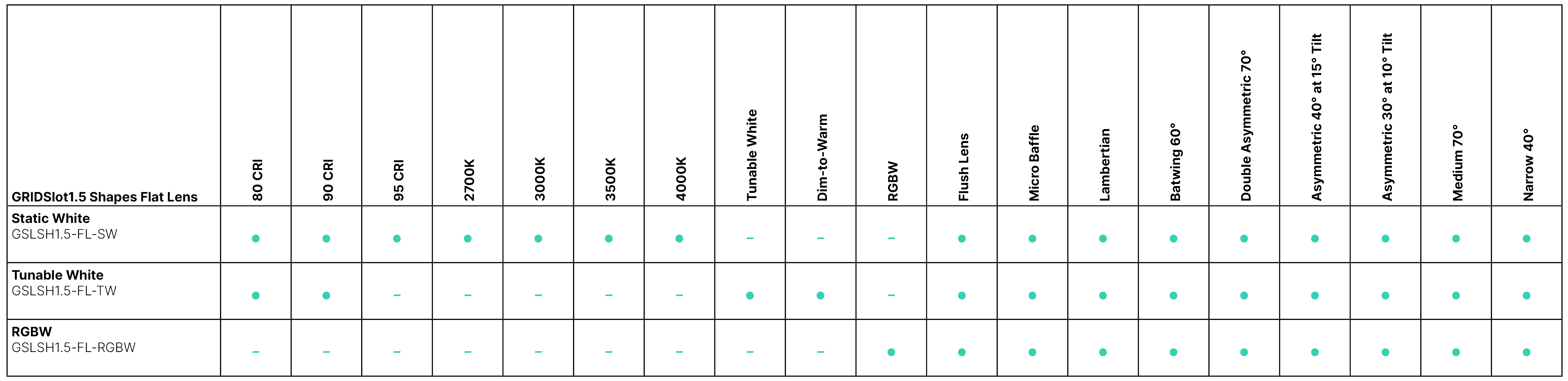

GRIDSlot1.5 Shapes Flat_Lens_Product_Configurator

Installation

Fixture Placement

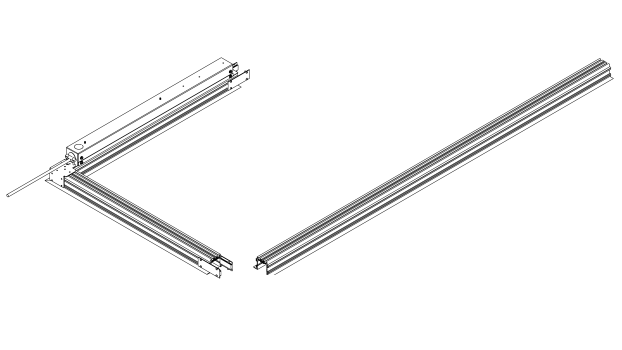

Depending on its size, the fixture may come with corners and straight sections. Locate each section and assembly the fixture on a flat, clean surface.

Fixture Location

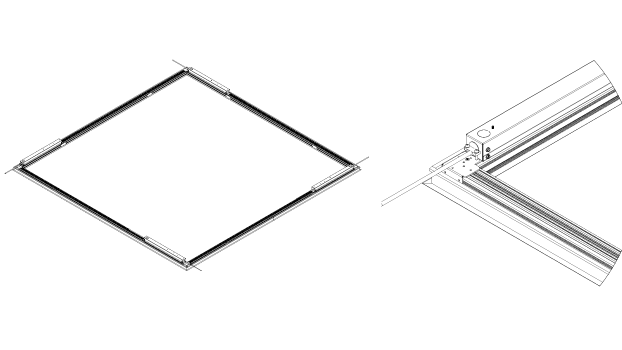

Fasten each housing to its mating housing with the provided joiner.

T-Bar Fins

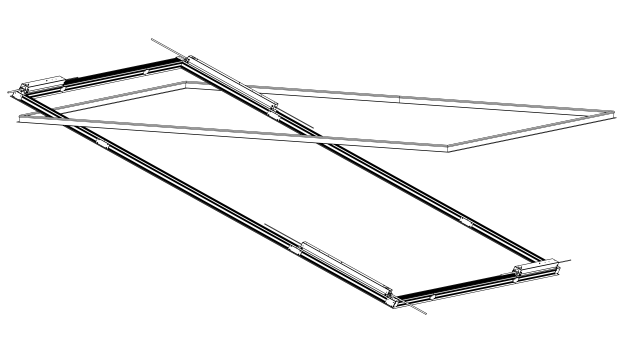

Bring the fixture up to the T-Bar and fit it through the installed location. This step will require multiple people. Do not attempt this with a single individual.

Install Driver Box

Let the fixture rest on top of the Tbar in its final position. Add suspension supports as needed. There are points throughout the fixture body to fasten to.
